10″ Fully Rugged Android Tablet | MJ-100

For peak efficiency in a do-anything rugged tablet, there’s no better choice than Estone Technology’s Android-powered MJ-100 tablet. Featuring MIL-STD-810G rugged construction, an efficient Rockchip CPU, and plenty of available features and options. Contact us now to request more info.

Key Features

  • 10” Rugged Tablet PC
  • Rockchip RK3399 Processor
  • Android 7.1 Operating System
  • 10-Point Capacitive Touchscreen
  • Optional Barcode, 4G LTE, & GPS Modules
  • Full IP65 Water & Dust Protection
  • 4ft Drop/Shock Protection (MIL-STD-810G)
  • Drop-in Docking
  • Long Battery Life, Up to 8 Hours
Inquiries Data Sheet

Extreme Efficiency

Operating on a chipset designed expressly for mobile applications, the MJ-100 defines flexibility and efficiency. Equipped with multi-carrier 4G LTE, it functions as an excellent classic mobile device. Or, add other modules to create a unique tool.

Ultra Durable LCD Protection

Fear no scratch, drop, or impact, with ultra-durable LCD protection construction from Estone Technology. While the rest of your device is easily and fully protected by a solid metal, rubber, and plastic enclosure, many screens are far more susceptible to damage. The MJ-100 LCD has been designed and tested not to fail.

Unlimited Wireless Connectivity

Take the entire office with you, no matter where you go in the field, with complete wireless connectivity, including WiFi and blazing-fast 4G LTE connectivity, adaptable for your choice of one or more carriers. Never be out of touch or unable to access the information you need.

Fully Rugged Construction

Planned and designed for every wear and tear situation, the MJ-100 tablet exceeds expectations for what a durable office-and-field tablet should be. It is fully MIL-STD-810G Standard compliant, and is able to sustain drops of up to 4 ft, heavy shocks and vibration, impacts, static discharge, and more. Sealed exterior ports protect even the most sensitive parts of your device.

Integrated Barcode Scanner Available

Mobility electronics can ease your workload! Available tools like integrated barcode scanners and GPS sensors help automate your most consistent tasks.

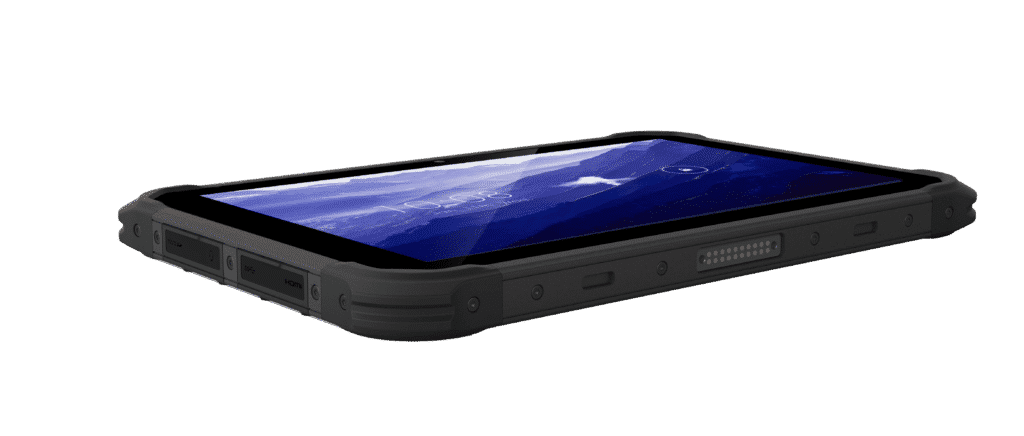

Drop-In Charging and Data

When you’re not on the move, simply drop the tablet into the dock to use as a panel PC and keep the battery always charged up. The dock supports both DC charging and USB connectivity for easy use and data transfer.

*Specifications are representative. Specific product technology may be different than indicated.

RUGGEDNESS
WaterproofIP65 IEC60529
Drop RatingMIL-STD-810G, 4ft to Plywood on 4 Corners
Shock RatingMIL-STD-810G, Method 516.6, Procedure I, 40g 11ms
Vibration RatingMIL-STD-810G, Method 514.6, Procedure I Category 4
ESD Protection4KV Touch, 8KV Air
EMC TestFollows FCC
SYSTEM
ProcessorRockChip RK3399, 1.8GHz, Dual-core Cortex-A72, Quad-core Cortex-A53
GPUMali-T860MP4
Memory2GB LPDDR3
Options:
4GB LPDDR3
OSAndroid 7.1
Options:
Linux (Custom Projects)
Storage32GB eMMC v5.1
Options:
64GB eMMC v5.1
128GB eMMC v5.1
DISPLAY
Screen Size10.1″ IPS
Resolution1920 x 1200
Brightness250 NIT
View Angle+/- 85°
Contrast Ratio800:1
TouchscreenCapacitive 10-Point Multi-Touch
Chemically Harden Cover Glass
Glass Coating Options:
Anti-Reflective
Anti-Glare
Anti-Fingerprint
COMMUNICATIONS
Wi-FiAP6255, 802.11 a/b/g/n/ac Dual-Band 2.4G & 5G
BluetoothBluetooth v4.0
4G LTE (Option)M2 Format
LTE FDD, LTE TDD, WCDMA, HSPA+, TD-SCDMA, GSM, GPRS, GEDGE
Band 850, 900, 1800, 1900 (MHz)
GPS (Option)Ublox 7
Tracks Up to 16 Satellites, 1575.42 MHz
Device GPS Accuracy < 15m, 95% Typical
Velocity Accuracy 0.05m/s
Heading Accuracy 0.3 Degrees
Horizontal Position Accuracy > 10m
I/O INTERFACE
SensorsGyroscope
Audio1x Built-In Microphone
1x Internal 8ohm 1W speaker
CameraFront Camera: 2MP
Rear Camera: 8MP with Auto Focus
Ports1x USB 3.0 @ 1A Type A
1x Micro USB 2.0 @ 1A
1x HDMI Output, TypeD
1x Audio Jack (3.5mm, 4 Pole, MIC input)
1x DC Jack 5.5mm OD Jack
1x Docking Connector (DC Input, 1 USB)
1x TF Card Slot (Micro SD), Up to 64GB SDXC, SDHC, to SD 3.0
ButtonsPower Button
Volume +, Volume –
Barcode Reader (Option)2D: PDF147, QR code
1D: Code 128, 39, 11, 93, GS1, UPC A & E.
MECHANICAL
ChassisFront: Plastic + TPU Rubber, Rear: Magnesium + Rubber
Options:
Anti-Microbial
Dimensions275 x 193 x 18.8mm
Weight1.05kg
POWER
AC Adapter12V DC 3A Output, 100-240V AC Input, Standard US Plug
Options:
Medical AC Adapter
Multi-Nation Plugs
Battery30Wh, Li-on Polymer, 2S1P (3.8V 8000mAh)
ENVIRONMENTAL
Operating Temp0°C to 45°C
Storage Temp-20°C to 60°C
Humidity10% to 90%
RoHSCompliant
REGULATORY
CertificationFCC, IATA

Documentation

MJ-100 Data SheetDownload
